Four head type Paper Tube Production Line

Model: TSJG-500

Characteristics:

• Used for making paper tube with inner diameter of 50-500mm and thickness 2-15mm;
• According to different paper tube, production speed could be 0-30m/min;
• Paper tube cutting length is controlled by sensor, easy operation;
• Main motor is 30KW, made in Shanghai. RPM is adjustable;
• Cross type paper stand, pneumatic glue supply system;
• Bottom paper with both gluing tank and lubricating tank;
• The cutting table motor is Gear type speed reducer motor, brand is Oute, made in Shanghai;
• Pneumatic control cutting table up/down;
• Cutter lifting/down speed is controlled by air valve;
• Cutting table moving on linear shaft, moving stably;
• Frequency converter control the main motor;
• PLC control and control through touch screen;
• PLC brand is Delta, other electric use Chint brand products, pneumatic parts use Tianao brand product;

Specification:

Transmitting system:

Control system:

Regular belt width choosing:

Configuration:

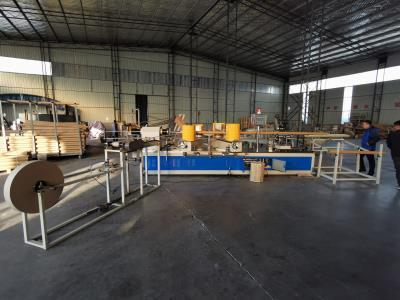

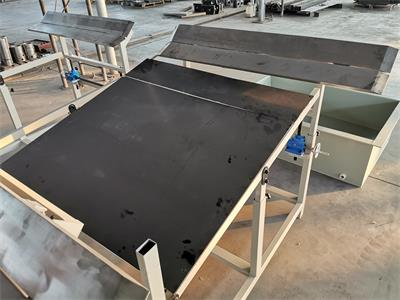

Photos of paper tube production line:
